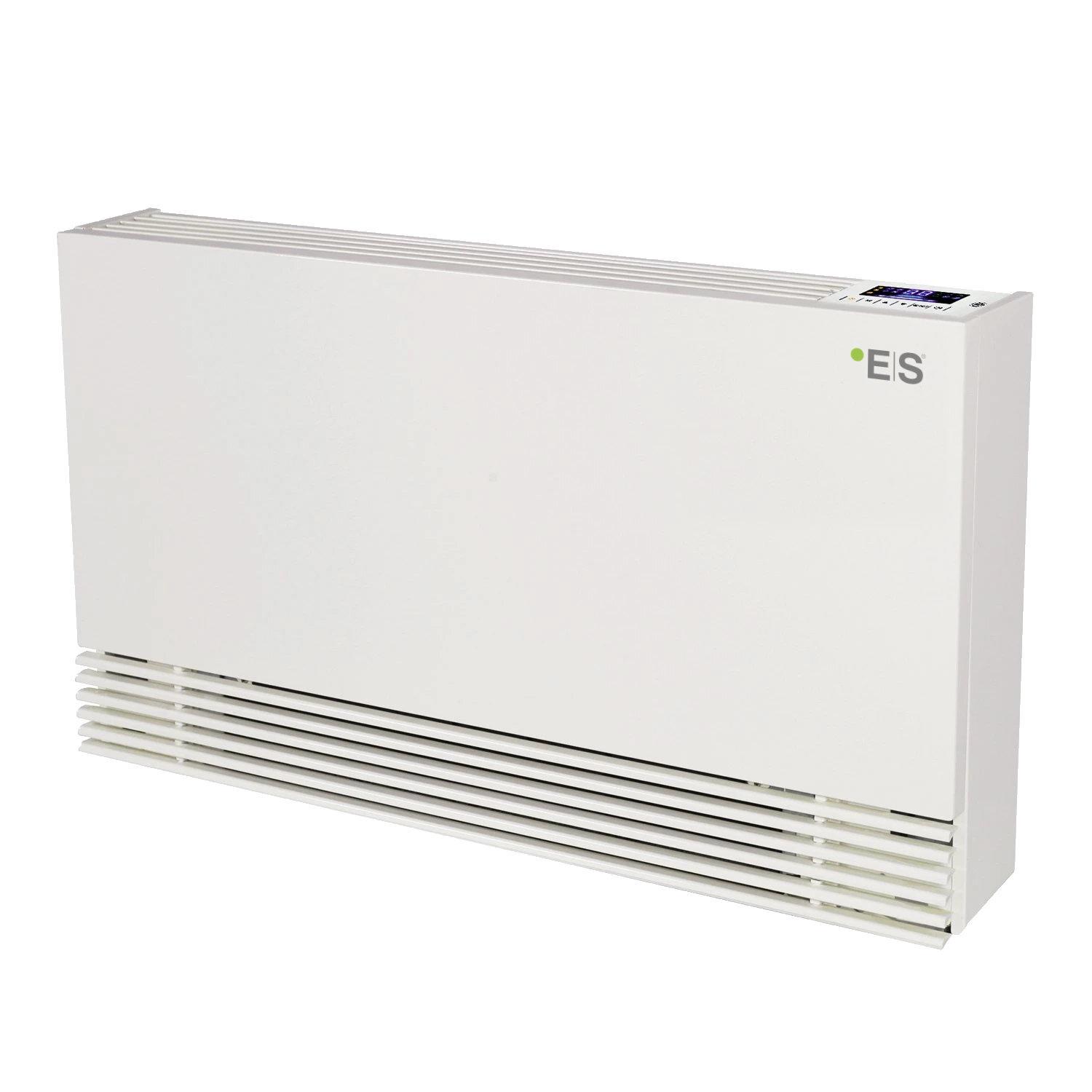

Ventilatorski konvektor ES FCF3100-V3

Talni/stenski ventilatorski konvektor 3,1 kW, brez 3-potnega termostatskega ventila.

    Ta kombinacija ne obstaja.



    Start writing here...

    Tehnični podatki

    Način ogrevanje
    Grelna zmogljivost (70/60°C)3,10 kW
    Grelna zmogljivost (50/45°C)2,00 kW
    Pretok ogrevalne vode343 l/h
    Padec tlaka pri ogrevanju7,50 kPa
    Način hlajenje
    Hladilna zmogljivost (7/12°C)1,50 kW
    Ventilator
    Pretok zraka (min)150 m3/h
    Pretok zraka (max)320 m3/h
    Priključki
    Vodni priključki1/2’’ inch
    Raven hrupa
    Raven hrupa (min)18 dB(A)
    Raven hrupa (max)40 dB(A)
    Napajanje
    Napajanje230/1/50 V/Ø/Hz
    Fizične dimenzije
    Dimenzije (Š x G x V) 894.0 x 129.0 x 580.0 mm
    Neto teža 22.0 kg

    (1) Heating: Air: 20°C DB, Hot water: 70°C / 60°C. (2) Heating: Air: 20°C DB, Hot water: 50°C / 45°C. (3) Cooling. Water in/out 7/12°C; room temperature DB/WB 27/19°C. (4) Sound pressure is tested in accordance to EN12102-2008 and ISO3745:201.
